Inteno Pulse EX400
The Inteno Pulse EX400 is a home desktop router supported by OpenWrt from version 24.10.1 onwards. The device is based on the MediaTek MT7621AT SoC and features 256 MB flash and 256 MB RAM. It offers dual-band WLAN, two 1 Gbit/s Ethernet ports and one USB 2.0 port. The Genexis Pulse EX400 is technically the same device.
Supported Versions
Hardware Highlights
Installation
Flashing with the OpenWrt Factory Image:
Note: Reverting to the original OEM firmware is not possible, as the manufacturer does not provide a downloadable OEM firmware image.
Firmware Upload (OEM GUI): Access the web interface at http://192.168.1.1 or if wan is connected to your local network it gets a address by your DHCP. Login with default credentials username: admin Password:admin. Go to SYSTEM → Firmware Upgrade. In section Manual Firmware Upgrade select your downloaded factory image or paste the link to the image: factory.bin Press Upgrade and in the popup no.
Firmware Upload (OEM Recovery GUI) Press and hold the reset button by starting the device for about 10 seconds. Access the recovery web interface at http://192.168.1.1 . Sellect your factory image and upload it.
Alternatively, the TFTP method can be used if required: → generic.flashing.tftp
Upgrading OpenWrt: After a successful initial flash, future updates can be performed via LuCI (web interface) or by using the `sysupgrade` command via SSH. → generic.sysupgrade
Flash Layout (OEM Layout)
The OEM firmware image uses ubifs.
Firmware Image Partitions (OEM):
| Offset | Size | Name | |
|---|---|---|---|
| 0x00000000 | 0x00100000 | uboot | |
| 0x00100000 | 0x0ff00000 | ubi | |
Network & VLAN
By default, a br-lan interface is used (combining LAN and WLAN). For detailed network settings and VLAN configuration, please consult the wiki page Network.
Opening the case
→ Warranty

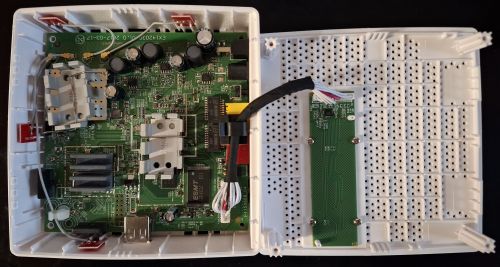

In the four corners of the bottom side are four screws under rubberstemps. After unscrewing these screws the top plate is held bei some hooks at the middle of the side with the USB-Port and the oposite side. You can unlock these hooks by pusching the top plate and pulling the side plate with a screwdriver.
Recovery in Case of Brick
If the device becomes unresponsive (“bricked”) due to a faulty firmware flash, the following recovery options are available:
Connecting the Serial Console & JTAG
Refer to the Serial Port Recovery and the Installing OpenWrt over TFTP for connection details. Serial connection settings:
115200 Baud, 8N1 (8 Bit & 1 Stop Bit), 3.3 V.
The serial port is accessible from outside through two slots, each for two wires. The slots are left side of the WAN-port.
Pinout is as follows:
┌───┬┬───┐ ┌─────┐ │TX ││RX │ │ │ │VCC││GND│ │ WAN │ └───┴┴───┘ └─────┘ You could leave VCC float.
Hardware
Technical Specifications
Bootlogs
OEM Bootlog / U-Boot
MT7621 stage1 code 10:33:11 (ASIC)
CPU=50000000 HZ BUS=16666666 HZ
Change MPLL source from XTAL to CR... do MEMPLL setting.. MEMPLL Config : 0x11100000 3PLL mode + External loopback
XTAL-40Mhz === DDR-1200Mhz
PLL4 FB_DL: 0x12, 1/0 = 655/369 49000000 PLL3 FB_DL: 0x14, 1/0 = 529/495 51000000 PLL2 FB_DL: 0x17, 1/0 = 591/433 5D000000 do DDR setting..[00320381] Apply DDR3 Setting...(use customer AC)
0 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120
--------------------------------------------------------------------------------
0000:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0001:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0002:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0003:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0004:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0005:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0006:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0007:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0008:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0009:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000A:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000B:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000C:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000D:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 000E:| 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 000F:| 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0010:| 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0011:| 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0012:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0013:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0014:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0015:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0016:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0017:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0018:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0019:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001A:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001B:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001C:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001D:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001E:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001F:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 rank 0 coarse = 15 rank 0 fine = 72 B:| 0 0 0 0 0 0 0 0 1 1 1 0 0 0 0 0 opt_dle value:9 DRAMC_R0DELDLY[018]=00001E20
RX DQS perbit delay software calibration
1.0-15 bit dq delay value
bit| 0 1 2 3 4 5 6 7 8 9
0 | 9 9 9 9 9 8 7 7 8 9 10 | 9 10 8 11 9 9
2.dqs window x=pass dqs delay value (min~max)center y=0-7bit DQ of every group input delay:DQS0 =32 DQS1 = 30
bit DQS0 bit DQS1 0 (1~60)30 8 (1~58)29 1 (1~60)30 9 (2~58)30 2 (1~59)30 10 (1~56)28 3 (1~60)30 11 (0~58)29 4 (1~61)31 12 (1~58)29 5 (1~60)30 13 (1~59)30 6 (0~60)30 14 (1~60)30 7 (1~64)32 15 (1~60)30
3.dq delay value last
bit| 0 1 2 3 4 5 6 7 8 9
0 | 11 11 11 11 10 10 9 7 9 9 10 | 11 11 9 11 9 9
TX perbyte calibration
DQS loop = 15, cmp_err_1 = ffff0000 dqs_perbyte_dly.last_dqsdly_pass[0]=15, finish count=1 dqs_perbyte_dly.last_dqsdly_pass[1]=15, finish count=2 DQ loop=15, cmp_err_1 = ffff0000 dqs_perbyte_dly.last_dqdly_pass[0]=15, finish count=1 dqs_perbyte_dly.last_dqdly_pass[1]=15, finish count=2 byte:0, (DQS,DQ)=(8,8) byte:1, (DQS,DQ)=(8,8) 20,data:88 [EMI] DRAMC calibration passed
MT7621 stage1 code done
CPU=50000000 HZ BUS=16666666 HZ
U-Boot 2016.09-rc2-g670ad7a (Sep 26 2020 - 23:43:16 +0200), Build: jenkins-gnxOS-Build-R-72
DRAM: 256 MiB
Config XHCI 40M PLL NAND: 256 MiB In: serial Out: serial Err: serial Net: Board Net Initialization Failed No ethernet found. Hit any key to stop autoboot: 0
primary system is 1
primary boot counter is 1
alt system is 0
alt boot counter is 0
seleced system is 1
Kernel command line = [console=ttyS0,115200 root=ubi0:rootfs_1 ubi.mtd=ubi rootfstype=ubifs mtdparts=MT7621-NAND:1M(uboot),-(ubi)] Writing to UBI... done Loading file '/boot/uImage' to addr 0x85000000... Done Loading file '/boot/dtb' to addr 0x84000000... Done ## Booting kernel from Legacy Image at 85000000 ...
Image Name: MIPS OpenWrt Linux-4.4.93 Image Type: MIPS Linux Kernel Image (lzma compressed) Data Size: 1551655 Bytes = 1.5 MiB Load Address: 80001000 Entry Point: 80001000 Verifying Checksum ... OK
## Flattened Device Tree blob at 84000000
Booting using the fdt blob at 0x84000000 Uncompressing Kernel Image ... OK Loading Device Tree to 8fa75000, end 8fa79c4b ... OK
[ 0.000000] Linux version 4.4.14 (jenkins@ubuntu-server-1604-64) (gcc version 5.5.0 (LEDE GCC 5.5.0 r8197-fcbf44e) ) #0 SMP Thu Sep 24 11:23:55 2020 [ 0.000000] SoC Type: MediaTek MT7621 ver:1 eco:3 [ 0.000000] bootconsole [early0] enabled [ 0.000000] CPU0 revision is: 0001992f (MIPS 1004Kc) [ 0.000000] MIPS: machine is ex400 [ 0.000000] Determined physical RAM map: [ 0.000000] memory: 10000000 @ 00000000 (usable) [ 0.000000] Initrd not found or empty - disabling initrd [ 0.000000] Zone ranges: [ 0.000000] Normal [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] HighMem empty [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] VPE topology {2,2} total 4 [ 0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.000000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.000000] PERCPU: Embedded 10 pages/cpu @8120c000 s8400 r8192 d24368 u40960 [ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 65024 [ 0.000000] Kernel command line: console=ttyS0,115200 root=ubi0:rootfs_1 ubi.mtd=ubi rootfstype=ubifs mtdparts=MT7621-NAND:1M(uboot),-(ubi) [ 0.000000] PID hash table entries: 1024 (order: 0, 4096 bytes) [ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes) [ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes) [ 0.000000] Writing ErrCtl register=0001ce00 [ 0.000000] Readback ErrCtl register=0001ce00 [ 0.000000] Memory: 254076K/262144K available (3606K kernel code, 161K rwdata, 836K rodata, 184K init, 249K bss, 8068K reserved, 0K cma-reserved, 0K highmem) [ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] Hierarchical RCU implementation. [ 0.000000] NR_IRQS:256 [ 0.000000] clocksource: GIC: mask: 0xffffffffffffffff max_cycles: 0xcaf478abb4, max_idle_ns: 440795247997 ns [ 0.000000] sched_clock: 32 bits at 100 Hz, resolution 10000000ns, wraps every 21474836475000000ns [ 0.000000] Calibrating delay loop... 586.13 BogoMIPS (lpj=2930688) [ 0.070000] pid_max: default: 32768 minimum: 301 [ 0.070000] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes) [ 0.080000] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes) [ 0.080000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.080000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.080000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.080000] CPU1 revision is: 0001992f (MIPS 1004Kc) [ 0.160000] Synchronize counters for CPU 1: done. [ 0.160000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.160000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.160000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.160000] CPU2 revision is: 0001992f (MIPS 1004Kc) [ 0.240000] Synchronize counters for CPU 2: done. [ 0.240000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.240000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.240000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.240000] CPU3 revision is: 0001992f (MIPS 1004Kc) [ 0.320000] Synchronize counters for CPU 3: done. [ 0.320000] Brought up 4 CPUs [ 0.320000] devtmpfs: initialized [ 0.330000] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.340000] pinctrl core: initialized pinctrl subsystem [ 0.340000] NET: Registered protocol family 16 [ 0.380000] pull PCIe RST: RALINK_RSTCTRL = 0 [ 0.380000] release PCIe RST: RALINK_RSTCTRL = 7000000 [ 0.380000] * Xtal 40MHz * [ 0.390000] release PCIe RST: RALINK_RSTCTRL = 7000000 [ 0.390000] Port 0 N_FTS = 1b102800 [ 0.390000] Port 1 N_FTS = 1b102800 [ 0.400000] Port 2 N_FTS = 1b102800 [ 1.450000] PCIE1 no card, disable it(RST&CLK) [ 1.450000] → 12007f0 [ 1.460000] PCIE0 enabled [ 1.460000] PCIE2 enabled [ 1.460000] PCI host bridge /pcie@1e140000 ranges: [ 1.460000] MEM 0x0000000060000000..0x000000006fffffff [ 1.470000] IO 0x000000001e160000..0x000000001e16ffff [ 1.470000] PCI coherence region base: 0x60000000, mask/settings: 0xf0000002 [ 1.510000] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 1.510000] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 1.520000] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 1.520000] PCI host bridge to bus 0000:00 [ 1.530000] pci_bus 0000:00: root bus resource [mem 0x60000000-0x6fffffff] [ 1.530000] pci_bus 0000:00: root bus resource [io 0xffffffff] [ 1.540000] pci_bus 0000:00: root bus resource [??? 0x00000000 flags 0x0] [ 1.550000] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff] [ 1.560000] pci 0000:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring [ 1.560000] pci 0000:00:01.0: bridge configuration invalid ([bus 00-00]), reconfiguring [ 1.570000] pci 0000:00:00.0: BAR 0: no space for [mem size 0x80000000] [ 1.580000] pci 0000:00:00.0: BAR 0: failed to assign [mem size 0x80000000] [ 1.590000] pci 0000:00:01.0: BAR 0: no space for [mem size 0x80000000] [ 1.590000] pci 0000:00:01.0: BAR 0: failed to assign [mem size 0x80000000] [ 1.600000] pci 0000:00:00.0: BAR 8: assigned [mem 0x60000000-0x600fffff] [ 1.610000] pci 0000:00:01.0: BAR 8: assigned [mem 0x60100000-0x601fffff] [ 1.610000] pci 0000:00:00.0: BAR 1: assigned [mem 0x60200000-0x6020ffff] [ 1.620000] pci 0000:00:01.0: BAR 1: assigned [mem 0x60210000-0x6021ffff] [ 1.630000] pci 0000:01:00.0: BAR 0: assigned [mem 0x60000000-0x600fffff] [ 1.630000] pci 0000:00:00.0: PCI bridge to [bus 01] [ 1.640000] pci 0000:00:00.0: bridge window [mem 0x60000000-0x600fffff] [ 1.650000] pci 0000:02:00.0: BAR 0: assigned [mem 0x60100000-0x601fffff 64bit] [ 1.650000] pci 0000:00:01.0: PCI bridge to [bus 02] [ 1.660000] pci 0000:00:01.0: bridge window [mem 0x60100000-0x601fffff] [ 1.660000] BAR0 at slot 0 = 0 [ 1.670000] bus=0x0, slot = 0x0 [ 1.670000] BAR0 at slot 1 = 0 [ 1.670000] bus=0x0, slot = 0x1 [ 1.680000] bus=0x1, slot = 0x0, irq=0xff [ 1.680000] bus=0x2, slot = 0x1, irq=0x0 [ 1.690000] clocksource: Switched to clocksource GIC [ 1.690000] NET: Registered protocol family 2 [ 1.710000] TCP established hash table entries: 2048 (order: 1, 8192 bytes) [ 1.710000] TCP bind hash table entries: 2048 (order: 2, 16384 bytes) [ 1.720000] TCP: Hash tables configured (established 2048 bind 2048) [ 1.730000] UDP hash table entries: 256 (order: 1, 8192 bytes) [ 1.730000] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes) [ 1.740000] NET: Registered protocol family 1 [ 1.750000] futex hash table entries: 1024 (order: 3, 32768 bytes) [ 1.760000] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 1.760000] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) © 2001-2006 Red Hat, Inc. [ 1.780000] io scheduler noop registered [ 1.780000] io scheduler deadline registered (default) [ 1.790000] Serial: 8250/16550 driver, 3 ports, IRQ sharing disabled [ 1.790000] console [ttyS0] disabled [ 1.800000] 1e000c00.uartlite: ttyS0 at MMIO 0x1e000c00 (irq = 33, base_baud = 3125000) is a 16550A [ 1.810000] console [ttyS0] enabled [ 1.810000] console [ttyS0] enabled [ 1.810000] bootconsole [early0] disabled [ 1.810000] bootconsole [early0] disabled [ 1.820000] MediaTek Nand driver init, version v2.1 Fix AHB virt2phys error [ 1.830000] nand: device found, Manufacturer ID: 0xc8, Chip ID: 0xda [ 1.840000] nand: ESMT NAND 256MiB 3,3V 8-bit [ 1.840000] nand: 256 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64 [ 1.850000] mtk_nand_ecc_init: mtd→oobsize 64 mtd→writesize 2048 [ 1.850000] # MTK NAND # : Use HW ECC [ 1.860000] [NAND]select ecc bit:4, sparesize :64 spare_per_sector=16 [ 1.860000] Scanning device for bad blocks [ 2.150000] 2 cmdlinepart partitions found on MTD device MT7621-NAND [ 2.160000] Creating 2 MTD partitions on “MT7621-NAND”: [ 2.170000] 0x000000000000-0x000000100000 : “uboot” [ 2.170000] 0x000000100000-0x000010000000 : “ubi” [ 2.180000] [mtk_nand] probe successfully! [ 2.180000] netif_napi_add() called with weight 128 on device eth%d [ 2.200000] libphy: mdio: probed [ 2.210000] mtk_soc_eth 1e100000.ethernet: loaded mt7530 driver [ 2.220000] mtk_soc_eth 1e100000.ethernet eth0: mediatek frame engine at 0xbe100000, irq 10 [ 2.230000] mt7621_wdt 1e000100.wdt: Initialized [ 2.230000] persistent_ram: uncorrectable error in header [ 2.240000] persistent_ram: uncorrectable error in header [ 2.250000] persistent_ram: uncorrectable error in header [ 2.250000] persistent_ram: uncorrectable error in header [ 2.290000] console [pstore-1] enabled [ 2.290000] pstore: Registered ramoops as persistent store backend [ 2.300000] ramoops: attached 0x80000@0xff80000, ecc: 16/0 [ 2.300000] NET: Registered protocol family 10 [ 2.310000] NET: Registered protocol family 17 [ 2.310000] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this. [ 2.330000] 8021q: 802.1Q VLAN Support v1.8 [ 2.330000] ubi0: attaching mtd1 [ 3.820000] mtk_soc_eth 1e100000.ethernet eth0: port 1 link up [ 3.820000] genlmsg_multicast() failed = 0xfffffffd [ 4.700000] ubi0: scanning is finished [ 4.720000] ubi0: attached mtd1 (name “ubi”, size 255 MiB) [ 4.730000] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes [ 4.740000] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 [ 4.740000] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096 [ 4.750000] ubi0: good PEBs: 2040, bad PEBs: 0, corrupted PEBs: 0 [ 4.760000] ubi0: user volume: 4, internal volumes: 1, max. volumes count: 128 [ 4.760000] ubi0: max/mean erase counter: 3/1, WL threshold: 4096, image sequence number: 0 [ 4.770000] ubi0: available PEBs: 34, total reserved PEBs: 2006, PEBs reserved for bad PEB handling: 40 [ 4.780000] ubi0: background thread “ubi_bgt0d” started, PID 307 [ 4.780000] hctosys: unable to open rtc device (rtc0) [ 4.870000] UBIFS (ubi0:3): recovery needed [ 5.350000] UBIFS (ubi0:3): recovery deferred [ 5.360000] UBIFS (ubi0:3): UBIFS: mounted UBI device 0, volume 3, name “rootfs_1”, R/O mode [ 5.360000] UBIFS (ubi0:3): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 5.370000] UBIFS (ubi0:3): FS size: 123039744 bytes (117 MiB, 969 LEBs), journal size 9023488 bytes (8 MiB, 72 LEBs) [ 5.390000] UBIFS (ubi0:3): reserved for root: 0 bytes (0 KiB) [ 5.390000] UBIFS (ubi0:3): media format: w4/r0 (latest is w4/r0), UUID 0C251C97-3CBE-44D0-A488-D4015D36BA18, small LPT model [ 5.400000] VFS: Mounted root (ubifs filesystem) readonly on device 0:12. [ 5.410000] devtmpfs: mounted [ 5.420000] Freeing unused kernel memory: 184K (80482000 - 804b0000) Error mounting /sys/fs/cgroup: No such file or directory [ 5.710000] init: Console is alive [ 5.710000] init: - watchdog - [ 6.540000] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 6.690000] usbcore: registered new interface driver usbfs [ 6.700000] usbcore: registered new interface driver hub [ 6.700000] usbcore: registered new device driver usb [ 6.740000] SCSI subsystem initialized [ 6.790000] xhci-mtk 1e1c0000.xhci: xHCI Host Controller [ 6.790000] xhci-mtk 1e1c0000.xhci: new USB bus registered, assigned bus number 1 [ 6.800000] xhci-mtk 1e1c0000.xhci: hcc params 0x01401198 hci version 0x96 quirks 0x00210010 [ 6.810000] xhci-mtk 1e1c0000.xhci: irq 29, io mem 0x1e1c0000 [ 6.820000] hub 1-0:1.0: USB hub found [ 6.820000] hub 1-0:1.0: 2 ports detected [ 6.830000] xhci-mtk 1e1c0000.xhci: xHCI Host Controller [ 6.830000] xhci-mtk 1e1c0000.xhci: new USB bus registered, assigned bus number 2 [ 6.840000] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM. [ 6.850000] hub 2-0:1.0: USB hub found [ 6.850000] hub 2-0:1.0: 1 port detected [ 6.870000] Ralink HW NAT Module Enabled [ 6.870000] PPE_GLO_CFG: 0xbe100e00 [ 7.280000] usb 1-2: new high-speed USB device number 2 using xhci-mtk [ 7.370000] register rlt_drv [ 7.380000] [ 7.380000] [ 7.380000]
pAd = c0501000, size = 1464560
[ 7.380000] [ 7.390000] ←- RTMPAllocTxRxRingMemory, Status=0, ErrorValue=0x [ 7.400000] ←- RTMPAllocAdapterBlock, Status=0 [ 7.400000] pAd→CSRBaseAddress =0xc0400000, csr_addr=0xc0400000! [ 7.410000] device_id =0x7603 [ 7.410000] RtmpChipOpsHook(507): Not support for HIF_MT yet! [ 7.420000] mt7603_init()-→ [ 7.420000] mt_bcn_buf_init(224): Not support for HIF_MT yet! [ 7.430000] ←-mt7603_init() [ 8.530000] mt_wifi: module license 'Proprietary' taints kernel. [ 8.540000] Disabling lock debugging due to kernel taint [ 8.630000] register mt_drv [ 8.650000] [ 8.650000] [ 8.650000]
pAd = c0c01000, size = 3770048
[ 8.650000] [ 8.660000] ←- RTMPAllocAdapterBlock, Status=0 [ 8.660000] get_wdev_by_idx: invalid idx(0) [ 8.670000] pAd→PciHif.CSRBaseAddress =0xc0b00000, csr_addr=0xc0b00000! [ 8.670000] get_wdev_by_idx: invalid idx(0) [ 8.680000] RTMPInitPCIeDevice():device_id=0x7615 [ 8.680000] DriverOwn()::Try to Clear FW Own... [ 8.910000] DriverOwn()::Success to clear FW Own [ 8.920000] mt_pci_chip_cfg(): HWVer=0x8a10, FWVer=0x8a10, pAd→ChipID=0x7615 [ 8.930000] mt_pci_chip_cfg(): HIF_SYS_REV=0x76150001 [ 8.930000] RtmpChipOpsHook(493): Not support for HIF_MT yet! MACVersion=0x0 [ 8.940000] mt7615_init()-→ [ 8.940000] Use 1st iPAiLNA default bin. [ 8.950000] Use 0st /etc_ro/wlan/MT7615E_EEPROM1.bin default bin. [ 8.950000] ←-mt7615_init() [ 8.960000] ChipOpsMCUHook [ 8.960000] cut_through_token_list_init(): TokenList inited done!id_head/tail=0/4096 [ 8.970000] cut_through_token_list_init(): 8e005b08,8e005b08 [ 8.980000] cut_through_token_list_init(): TokenList inited done!id_head/tail=0/4096 [ 8.990000] cut_through_token_list_init(): 8e005b18,8e005b18 [ 8.990000] ←- RTMPAllocTxRxRingMemory, Status=0 [ 9.000000] get_wdev_by_idx: invalid idx(0) [ 9.000000] get_wdev_by_idx: invalid idx(0) [ 9.010000] get_wdev_by_idx: invalid idx(0) [ 9.010000] get_wdev_by_idx: invalid idx(0) [ 9.010000] get_wdev_by_idx: invalid idx(0) [ 9.020000] get_wdev_by_idx: invalid idx(0) [ 9.020000] get_wdev_by_idx: invalid idx(0) [ 9.030000] pci probe count=1 [ 9.040000] usb-storage 1-2:1.0: USB Mass Storage device detected [ 9.050000] scsi host0: usb-storage 1-2:1.0 [ 9.060000] usbcore: registered new interface driver usb-storage [ 9.060000] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 9.080000] init: - preinit - [ 9.330000] random: jshn urandom read with 25 bits of entropy available WARNING: Variable 'lan' does not exist or is not an array/object Press the [f] key and hit [enter] to enter failsafe mode Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level [ 10.060000] scsi 0:0:0:0: Direct-Access USB SanDisk 3.2Gen1 1.00 PQ: 0 ANSI: 6 [ 10.070000] sd 0:0:0:0: [sda] 120164352 512-byte logical blocks: (61.5 GB/57.3 GiB) [ 10.080000] sd 0:0:0:0: [sda] Write Protect is off [ 10.080000] sd 0:0:0:0: [sda] Write cache: disabled, read cache: enabled, doesn't support DPO or FUA [ 10.110000] sda: sda1 [ 10.120000] sd 0:0:0:0: [sda] Attached SCSI removable disk [ 12.590000] mount_root: mounting /dev/root [ 12.600000] UBIFS (ubi0:3): completing deferred recovery [ 12.620000] UBIFS (ubi0:3): background thread “ubifs_bgt0_3” started, PID 429 [ 12.640000] UBIFS (ubi0:3): deferred recovery completed [ 12.650000] mount_root: loading kmods from internal overlay [ 12.690000] kmodloader: loading kernel modules from etc/modules-boot.d/* [ 12.700000] kmodloader: done loading kernel modules from etc/modules-boot.d/* [ 12.830000] block: attempting to load /etc/config/fstab [ 12.830000] block: unable to load configuration (fstab: Entry not found) [ 12.840000] block: no usable configuration mounting overlay [ 12.890000] urandom-seed: Seeding with /etc/urandom.seed [ 12.920000] procd: - early - [ 12.930000] procd: - watchdog - [ 13.470000] procd: - watchdog - [ 13.470000] procd: - ubus - [ 13.640000] procd: - init - Please press Enter to activate this console.
OpenWrt Bootlog
MT7621 stage1 code 10:33:11 (ASIC)
CPU=50000000 HZ BUS=16666666 HZ
Change MPLL source from XTAL to CR... do MEMPLL setting.. MEMPLL Config : 0x11100000 3PLL mode + External loopback
XTAL-40Mhz === DDR-1200Mhz
PLL4 FB_DL: 0x12, 1/0 = 750/274 49000000 PLL3 FB_DL: 0x14, 1/0 = 696/328 51000000 PLL2 FB_DL: 0x17, 1/0 = 618/406 5D000000 do DDR setting..[00320381] Apply DDR3 Setting...(use customer AC)
0 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120
--------------------------------------------------------------------------------
0000:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0001:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0002:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0003:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0004:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0005:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0006:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0007:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0008:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0009:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000A:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000B:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000C:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 000D:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 000E:| 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 000F:| 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0010:| 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0011:| 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0012:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0013:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0014:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0015:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0016:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0017:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0018:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0019:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001A:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001B:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001C:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001D:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001E:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 001F:| 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 rank 0 coarse = 15 rank 0 fine = 72 B:| 0 0 0 0 0 0 0 0 0 1 1 1 0 0 0 0 opt_dle value:10 DRAMC_R0DELDLY[018]=00001E20
RX DQS perbit delay software calibration
1.0-15 bit dq delay value
bit| 0 1 2 3 4 5 6 7 8 9
0 | 9 9 9 9 9 8 7 7 8 9 10 | 9 11 8 11 9 9
2.dqs window x=pass dqs delay value (min~max)center y=0-7bit DQ of every group input delay:DQS0 =32 DQS1 = 30
bit DQS0 bit DQS1 0 (1~60)30 8 (1~58)29 1 (2~58)30 9 (1~59)30 2 (1~59)30 10 (1~56)28 3 (1~60)30 11 (2~58)30 4 (1~60)30 12 (1~57)29 5 (1~59)30 13 (1~58)29 6 (1~60)30 14 (1~59)30 7 (1~63)32 15 (1~59)30
3.dq delay value last
bit| 0 1 2 3 4 5 6 7 8 9
0 | 11 11 11 11 11 10 9 7 9 9 10 | 11 11 9 12 9 9
TX perbyte calibration
DQS loop = 15, cmp_err_1 = ffff0000 dqs_perbyte_dly.last_dqsdly_pass[0]=15, finish count=1 dqs_perbyte_dly.last_dqsdly_pass[1]=15, finish count=2 DQ loop=15, cmp_err_1 = ffff0000 dqs_perbyte_dly.last_dqdly_pass[0]=15, finish count=1 dqs_perbyte_dly.last_dqdly_pass[1]=15, finish count=2 byte:0, (DQS,DQ)=(8,8) byte:1, (DQS,DQ)=(8,8) 20,data:88 [EMI] DRAMC calibration passed
MT7621 stage1 code done
CPU=50000000 HZ BUS=16666666 HZ
U-Boot 2016.09-rc2-g670ad7a (Sep 26 2020 - 23:43:16 +0200), Build: jenkins-gnxOS-Build-R-72
DRAM: 256 MiB Software System Reset Occurred
Config XHCI 40M PLL NAND: 256 MiB In: serial Out: serial Err: serial Net: Board Net Initialization Failed No ethernet found. Hit any key to stop autoboot: 0
primary system is 0
primary boot counter is 1
alt system is 1
alt boot counter is 0
seleced system is 0
Kernel command line = [console=ttyS0,115200 root=ubi0:rootfs_0 ubi.mtd=ubi rootfstype=ubifs mtdparts=MT7621-NAND:1M(uboot),-(ubi)] Writing to UBI... done Loading file '/boot/uImage' to addr 0x85000000... Done Loading file '/boot/dtb' to addr 0x84000000... Done ## Booting kernel from Legacy Image at 85000000 ...
Image Name: MIPS OpenWrt Linux-6.6.119 Image Type: MIPS Linux Kernel Image (lzma compressed) Data Size: 3180813 Bytes = 3 MiB Load Address: 80001000 Entry Point: 80001000 Verifying Checksum ... OK
## Flattened Device Tree blob at 84000000
Booting using the fdt blob at 0x84000000 Uncompressing Kernel Image ... OK Loading Device Tree to 8fa74000, end 8fa7a210 ... OK
Kernel Log
[ 0.000000] Linux version 6.6.119 (builder@buildhost) (mipsel-openwrt-linux-musl-gcc (OpenWrt GCC 13.3.0 r29087-d9c5716d1d) 13.3.0, GNU ld (GNU Binutils) 2.42) #0 SMP Wed Dec 17 21:08:22 2025 [ 0.000000] SoC Type: MediaTek MT7621 ver:1 eco:3 [ 0.000000] printk: bootconsole [early0] enabled [ 0.000000] CPU0 revision is: 0001992f (MIPS 1004Kc) [ 0.000000] MIPS: machine is Genexis Pulse EX400 [ 0.000000] Initrd not found or empty - disabling initrd [ 0.000000] VPE topology {2,2} total 4 [ 0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.000000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.000000] Zone ranges: [ 0.000000] Normal [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] percpu: Embedded 12 pages/cpu s19040 r8192 d21920 u49152 [ 0.000000] Kernel command line: console=ttyS0,115200 rootfstype=squashfs,jffs2 [ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes, linear) [ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes, linear) [ 0.000000] Writing ErrCtl register=0001ce00 [ 0.000000] Readback ErrCtl register=0001ce00 [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 64960 [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off [ 0.000000] Memory: 247796K/262144K available (8390K kernel code, 654K rwdata, 1020K rodata, 1252K init, 229K bss, 14348K reserved, 0K cma-reserved) [ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] rcu: Hierarchical RCU implementation. [ 0.000000] Tracing variant of Tasks RCU enabled. [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies. [ 0.000000] NR_IRQS: 256 [ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention. [ 0.000000] clocksource: GIC: mask: 0xffffffffffffffff max_cycles: 0xcaf478abb4, max_idle_ns: 440795247997 ns [ 0.000004] sched_clock: 64 bits at 880MHz, resolution 1ns, wraps every 4398046511103ns [ 0.008072] Calibrating delay loop... 586.13 BogoMIPS (lpj=2930688) [ 0.066206] pid_max: default: 32768 minimum: 301 [ 0.079402] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.086639] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.102876] RCU Tasks Trace: Setting shift to 2 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=4. [ 0.112639] rcu: Hierarchical SRCU implementation. [ 0.117339] rcu: Max phase no-delay instances is 1000. [ 0.123307] smp: Bringing up secondary CPUs ... [ 0.128589] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.128614] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.128628] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.128677] CPU1 revision is: 0001992f (MIPS 1004Kc) [ 0.182740] Synchronize counters for CPU 1: done. [ 0.214652] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.214675] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.214687] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.214720] CPU2 revision is: 0001992f (MIPS 1004Kc) [ 0.273602] Synchronize counters for CPU 2: done. [ 0.304292] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.304314] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.304325] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.304361] CPU3 revision is: 0001992f (MIPS 1004Kc) [ 0.358802] Synchronize counters for CPU 3: done. [ 0.388670] smp: Brought up 1 node, 4 CPUs [ 0.399889] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.409708] futex hash table entries: 1024 (order: 3, 32768 bytes, linear) [ 0.420552] pinctrl core: initialized pinctrl subsystem [ 0.428645] NET: Registered PF_NETLINK/PF_ROUTE protocol family [ 0.435367] thermal_sys: Registered thermal governor 'step_wise' [ 0.437077] /pinctrl: Fixed dependency cycle(s) with /pinctrl/pinctrl0 [ 0.465712] clocksource: Switched to clocksource GIC [ 0.480896] NET: Registered PF_INET protocol family [ 0.486060] IP idents hash table entries: 4096 (order: 3, 32768 bytes, linear) [ 0.495064] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 4096 bytes, linear) [ 0.503393] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) [ 0.511072] TCP established hash table entries: 2048 (order: 1, 8192 bytes, linear) [ 0.518702] TCP bind hash table entries: 2048 (order: 3, 32768 bytes, linear) [ 0.525922] TCP: Hash tables configured (established 2048 bind 2048) [ 0.533183] MPTCP token hash table entries: 256 (order: 0, 4096 bytes, linear) [ 0.540716] UDP hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.547214] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.555069] NET: Registered PF_UNIX/PF_LOCAL protocol family [ 0.560745] PCI: CLS 0 bytes, default 32 [ 0.568712] workingset: timestamp_bits=14 max_order=16 bucket_order=2 [ 0.576405] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.582145] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) © 2001-2006 Red Hat, Inc. [ 0.597747] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251) [ 0.608955] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.614928] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.620864] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.627096] mt7621-pci 1e140000.pcie: host bridge /pcie@1e140000 ranges: [ 0.633740] mt7621-pci 1e140000.pcie: No bus range found for /pcie@1e140000, using [bus 00-ff] [ 0.642531] mt7621-pci 1e140000.pcie: MEM 0x0060000000..0x006fffffff → 0x0060000000 [ 0.650641] mt7621-pci 1e140000.pcie: IO 0x001e160000..0x001e16ffff → 0x0000000000 [ 1.025714] mt7621-pci 1e140000.pcie: pcie1 no card, disable it (RST & CLK) [ 1.032618] mt7621-pci 1e140000.pcie: PCIE0 enabled [ 1.037501] mt7621-pci 1e140000.pcie: PCIE2 enabled [ 1.042491] PCI coherence region base: 0x60000000, mask/settings: 0xf0000002 [ 1.049651] mt7621-pci 1e140000.pcie: PCI host bridge to bus 0000:00 [ 1.055980] pci_bus 0000:00: root bus resource [bus 00-ff] [ 1.061388] pci_bus 0000:00: root bus resource [mem 0x60000000-0x6fffffff] [ 1.068291] pci_bus 0000:00: root bus resource [io 0x0000-0xffff] [ 1.074427] pci 0000:00:00.0: [0e8d:0801] type 01 class 0x060400 [ 1.080381] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x7fffffff] [ 1.086620] pci 0000:00:00.0: reg 0x14: [mem 0x60400000-0x6040ffff] [ 1.092860] pci 0000:00:00.0: supports D1 [ 1.096803] pci 0000:00:00.0: PME# supported from D0 D1 D3hot [ 1.103424] pci 0000:00:02.0: [0e8d:0801] type 01 class 0x060400 [ 1.109450] pci 0000:00:02.0: reg 0x10: [mem 0x00000000-0x7fffffff] [ 1.115630] pci 0000:00:02.0: reg 0x14: [mem 0x60410000-0x6041ffff] [ 1.121943] pci 0000:00:02.0: supports D1 [ 1.125890] pci 0000:00:02.0: PME# supported from D0 D1 D3hot [ 1.133890] pci 0000:01:00.0: [14c3:7603] type 00 class 0x028000 [ 1.139913] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x000fffff] [ 1.146279] pci 0000:01:00.0: PME# supported from D0 D3hot D3cold [ 1.152611] pci 0000:00:00.0: PCI bridge to [bus 01-ff] [ 1.157808] pci 0000:00:00.0: bridge window [io 0x0000-0x0fff] [ 1.163819] pci 0000:00:00.0: bridge window [mem 0x60000000-0x600fffff] [ 1.170584] pci 0000:00:00.0: bridge window [mem 0x60100000-0x601fffff pref] [ 1.177782] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01 [ 1.184587] pci 0000:02:00.0: [14c3:7615] type 00 class 0x000280 [ 1.190597] pci 0000:02:00.0: reg 0x10: [mem 0x00000000-0x000fffff 64bit] [ 1.197508] pci 0000:02:00.0: 2.000 Gb/s available PCIe bandwidth, limited by 2.5 GT/s PCIe x1 link at 0000:00:02.0 (capable of 4.000 Gb/s with 5.0 GT/s PCIe x1 link) [ 1.212577] pci 0000:00:02.0: PCI bridge to [bus 02-ff] [ 1.217783] pci 0000:00:02.0: bridge window [io 0x0000-0x0fff] [ 1.223801] pci 0000:00:02.0: bridge window [mem 0x60200000-0x602fffff] [ 1.230570] pci 0000:00:02.0: bridge window [mem 0x60300000-0x603fffff pref] [ 1.237743] pci_bus 0000:02: busn_res: [bus 02-ff] end is updated to 02 [ 1.244381] pci 0000:00:00.0: BAR 0: no space for [mem size 0x80000000] [ 1.250925] pci 0000:00:00.0: BAR 0: failed to assign [mem size 0x80000000] [ 1.257838] pci 0000:00:02.0: BAR 0: no space for [mem size 0x80000000] [ 1.264373] pci 0000:00:02.0: BAR 0: failed to assign [mem size 0x80000000] [ 1.271335] pci 0000:00:00.0: BAR 8: assigned [mem 0x60000000-0x600fffff] [ 1.278059] pci 0000:00:00.0: BAR 9: assigned [mem 0x60100000-0x601fffff pref] [ 1.285200] pci 0000:00:02.0: BAR 8: assigned [mem 0x60200000-0x602fffff] [ 1.291968] pci 0000:00:02.0: BAR 9: assigned [mem 0x60300000-0x603fffff pref] [ 1.299140] pci 0000:00:00.0: BAR 1: assigned [mem 0x60400000-0x6040ffff] [ 1.305884] pci 0000:00:02.0: BAR 1: assigned [mem 0x60410000-0x6041ffff] [ 1.312590] pci 0000:00:00.0: BAR 7: assigned [io 0x0000-0x0fff] [ 1.318666] pci 0000:00:02.0: BAR 7: assigned [io 0x1000-0x1fff] [ 1.324696] pci 0000:01:00.0: BAR 0: assigned [mem 0x60000000-0x600fffff] [ 1.331469] pci 0000:00:00.0: PCI bridge to [bus 01] [ 1.336376] pci 0000:00:00.0: bridge window [io 0x0000-0x0fff] [ 1.342397] pci 0000:00:00.0: bridge window [mem 0x60000000-0x600fffff] [ 1.349163] pci 0000:00:00.0: bridge window [mem 0x60100000-0x601fffff pref] [ 1.356343] pci 0000:02:00.0: BAR 0: assigned [mem 0x60200000-0x602fffff 64bit] [ 1.363574] pci 0000:00:02.0: PCI bridge to [bus 02] [ 1.368517] pci 0000:00:02.0: bridge window [io 0x1000-0x1fff] [ 1.374537] pci 0000:00:02.0: bridge window [mem 0x60200000-0x602fffff] [ 1.381303] pci 0000:00:02.0: bridge window [mem 0x60300000-0x603fffff pref] [ 1.390096] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled [ 1.406168] printk: console [ttyS0] disabled [ 1.411333] 1e000c00.uartlite: ttyS0 at MMIO 0x1e000c00 (irq = 18, base_baud = 3125000) is a 16550A [ 1.420425] printk: console [ttyS0] enabled [ 1.420425] printk: console [ttyS0] enabled [ 1.428715] printk: bootconsole [early0] disabled [ 1.428715] printk: bootconsole [early0] disabled [ 1.442403] nand: device found, Manufacturer ID: 0xc8, Chip ID: 0xda [ 1.448825] nand: ESMT NAND 256MiB 3,3V 8-bit [ 1.453174] nand: 256 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64 [ 1.460743] mt7621-nand 1e003000.nand: ECC strength adjusted to 4 bits [ 1.467347] 2 fixed-partitions partitions found on MTD device mt7621-nand [ 1.474452] Creating 2 MTD partitions on “mt7621-nand”: [ 1.479709] 0x000000000000-0x000000100000 : “uboot” [ 1.497478] 0x000000100000-0x000010000000 : “ubi” [ 4.322662] ubi0: attaching mtd1 [ 9.028231] ubi0: scanning is finished [ 9.048532] ubi0: attached mtd1 (name “ubi”, size 255 MiB) [ 9.054049] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes [ 9.060942] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 [ 9.067737] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096 [ 9.074673] ubi0: good PEBs: 2040, bad PEBs: 0, corrupted PEBs: 0 [ 9.080754] ubi0: user volume: 5, internal volumes: 1, max. volumes count: 128 [ 9.087965] ubi0: max/mean erase counter: 4/2, WL threshold: 4096, image sequence number: 0 [ 9.096299] ubi0: available PEBs: 0, total reserved PEBs: 2040, PEBs reserved for bad PEB handling: 40 [ 9.105599] ubi0: background thread “ubi_bgt0d” started, PID 201 [ 9.107396] block ubiblock0_3: created from ubi0:3(rootfs) [ 9.117110] ubiblock: device ubiblock0_3 (rootfs) set to be root filesystem [ 9.257905] i2c_dev: i2c /dev entries driver [ 9.298059] NET: Registered PF_INET6 protocol family [ 9.305930] Segment Routing with IPv6 [ 9.309686] In-situ OAM (IOAM) with IPv6 [ 9.313743] NET: Registered PF_PACKET protocol family [ 9.318896] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this. [ 9.332481] 8021q: 802.1Q VLAN Support v1.8 [ 9.367676] gpio-515 (sda): enforced open drain please flag it properly in DT/ACPI DSDT/board file [ 9.376761] gpio-516 (scl): enforced open drain please flag it properly in DT/ACPI DSDT/board file [ 9.386412] i2c-gpio i2c-gpio: using lines 515 (SDA) and 516 (SCL) [ 9.520061] mt7530-mdio mdio-bus:1f: MT7530 adapts as multi-chip module [ 9.537709] mtk_soc_eth 1e100000.ethernet eth0: mediatek frame engine at 0xbe100000, irq 19 [ 9.549627] mtk_soc_eth 1e100000.ethernet eth1: mediatek frame engine at 0xbe100000, irq 19 [ 9.559356] mt7530-mdio mdio-bus:1f: MT7530 adapts as multi-chip module [ 9.593111] mt7530-mdio mdio-bus:1f: configuring for fixed/rgmii link mode [ 9.601828] mt7530-mdio mdio-bus:1f lan (uninitialized): PHY [mt7530-0:01] driver [MediaTek MT7530 PHY] (irq=21) [ 9.614399] mt7530-mdio mdio-bus:1f: Link is Up - 1Gbps/Full - flow control rx/tx [ 9.617178] mtk_soc_eth 1e100000.ethernet eth0: entered promiscuous mode [ 9.628765] DSA: tree 0 setup [ 9.633017] clk: Disabling unused clocks [ 9.645410] VFS: Mounted root (squashfs filesystem) readonly on device 254:0. [ 9.656847] Freeing unused kernel image (initmem) memory: 1252K [ 9.662796] This architecture does not have kernel memory protection. [ 9.669285] Run /sbin/init as init process [ 10.138147] init: Console is alive [ 10.141886] init: - watchdog - [ 11.016235] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 11.076238] usbcore: registered new interface driver usbfs [ 11.081906] usbcore: registered new interface driver hub [ 11.087522] usbcore: registered new device driver usb [ 11.097021] button_hotplug: loading out-of-tree module taints kernel. [ 11.103831] Button Hotplug driver version 0.4.1 [ 11.121197] xhci-mtk 1e1c0000.xhci: supply vbus not found, using dummy regulator [ 11.129015] xhci-mtk 1e1c0000.xhci: supply vusb33 not found, using dummy regulator [ 11.136999] xhci-mtk 1e1c0000.xhci: xHCI Host Controller [ 11.142408] xhci-mtk 1e1c0000.xhci: new USB bus registered, assigned bus number 1 [ 11.154995] xhci-mtk 1e1c0000.xhci: hcc params 0x01401198 hci version 0x96 quirks 0x0000000000280010 [ 11.164240] xhci-mtk 1e1c0000.xhci: irq 26, io mem 0x1e1c0000 [ 11.170306] xhci-mtk 1e1c0000.xhci: xHCI Host Controller [ 11.175623] xhci-mtk 1e1c0000.xhci: new USB bus registered, assigned bus number 2 [ 11.183115] xhci-mtk 1e1c0000.xhci: Host supports USB 3.0 SuperSpeed [ 11.190646] hub 1-0:1.0: USB hub found [ 11.194586] hub 1-0:1.0: 2 ports detected [ 11.199822] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM. [ 11.209178] hub 2-0:1.0: USB hub found [ 11.213070] hub 2-0:1.0: 1 port detected [ 11.226494] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 11.239169] init: - preinit - [ 11.944335] mtk_soc_eth 1e100000.ethernet wan: renamed from eth1 [ 13.395735] random: crng init done Cannot parse config file '/etc/fw_env.config': No such file or directory Failed to find NVMEM device [ 14.138999] mtk_soc_eth 1e100000.ethernet eth0: configuring for fixed/rgmii link mode [ 14.151715] mt7530-mdio mdio-bus:1f lan: configuring for phy/gmii link mode [ 14.158811] mtk_soc_eth 1e100000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx Press the [f] key and hit [enter] to enter failsafe mode Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level [ 15.787855] mt7530-mdio mdio-bus:1f lan: Link is Up - 100Mbps/Full - flow control rx/tx [ 18.548607] UBIFS (ubi0:4): Mounting in unauthenticated mode [ 18.554582] UBIFS (ubi0:4): background thread “ubifs_bgt0_4” started, PID 614 [ 18.614973] UBIFS (ubi0:4): recovery needed [ 18.749949] UBIFS (ubi0:4): recovery completed [ 18.754660] UBIFS (ubi0:4): UBIFS: mounted UBI device 0, volume 4, name “rootfs_data” [ 18.762536] UBIFS (ubi0:4): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 18.772434] UBIFS (ubi0:4): FS size: 236302336 bytes (225 MiB, 1861 LEBs), max 1873 LEBs, journal size 11808768 bytes (11 MiB, 93 LEBs) [ 18.784577] UBIFS (ubi0:4): reserved for root: 4952683 bytes (4836 KiB) [ 18.791191] UBIFS (ubi0:4): media format: w5/r0 (latest is w5/r0), UUID F987F03B-586F-4BBC-9277-C0EBC8AB2828, small LPT model [ 18.808714] mount_root: switching to ubifs overlay [ 18.830146] urandom-seed: Seeding with /etc/urandom.seed [ 18.925852] mt7530-mdio mdio-bus:1f lan: Link is Down [ 18.944735] procd: - early - [ 18.947933] procd: - watchdog - [ 19.544865] procd: - watchdog - [ 19.549250] procd: - ubus - [ 19.709348] procd: - init - Please press Enter to activate this console.
Troubleshooting
Untill now there are no forum results for the Pulse EX400 except the Release Notes: Forum Search
For further issues or questions, please consult the OpenWrt community.
