Dataentry
- Device Type:
- Single Board Computer
- Brand:
- Sinovoip
- Model:
- Banana Pi BPI-R4
- Availability:
- Available 2025
- Where available:
- AliExpress, Amazon
- Supported Since Commit:
- https://git.openwrt.org/?p=openwrt/openwrt.git;a=commit;h=f16dc4b42fb265affb2298e815a7ce0a13d60da6
- Supported Since Rel:
- 24.10.0
- Supported Current Rel:
- 24.10.4
- Gluon support:
- unknown
- Target:
- mediatek
- Subtarget:
- filogic
- Package architecture:
- aarch64_cortex-a53
- Bootloader:
- U-Boot
- CPU:
- MediaTek MT7988AV
- CPU Cores:
- 4
- CPU MHz:
- 1800
- Flash MB:
- 128NAND, eMMC, microSD
- RAM MB:
- 4096
- Ethernet 100M ports:
- -
- Ethernet 1Gbit ports:
- 4
- Ethernet 2.5Gbit ports:
- -
- Ethernet 5Gbit ports:
- -
- Ethernet 10Gbit ports:
- -
- SFP ports:
- -
- SFP+ ports:
- 2
- Switch:
- MediaTek MT7988AV
- VLAN:
- Yes
- Modem:
- -
- Comments network ports:
- 2x SFP+ (10G, 5G, 2.5G, 1G)
- WLAN Hardware:
- Optional: MediaTek MT7995AV (double miniPCIe module)
- WLAN 2.4GHz:
- b/g/n/ax
- WLAN 5.0GHz:
- a/n/ac/ax
- WLAN 6.0GHz:
- ax/be
- WLAN 60.0GHz:
- -
- WLAN Comments:
- Requires MT7995AV module (2.4GHz 2x2:2, 5GHz 3x3:3, 6GHz 3x3:3)
- WLAN driver:
- mt76
- Detachable Antennas:
- 6
- Bluetooth:
- -
- miniPCI ports:
- 1x M.2 Key B, 1x M.2 Key M, 2x miniPCIe
- USB ports:
- 1x 3.0
- SATA ports:
- -
- Video ports:
- -
- Audio ports:
- -
- Phone ports:
- -
- Serial:
- Yes
- Serial connection parameters:
- 115200 / 8N1
- Serial connection voltage:
- 3.3
- JTAG:
- ¿
- LED count:
- 7
- Button count:
- 2
- GPIOs:
- more than 20
- Power Supply:
- 12 VDC, 5.2A or 19 VDC, 3.2A via barrel jack
- Outdoor:
- No
- OpenVPN performance:
- ¿
- Wireguard performance:
- 1300
- Device Page:
- bananapi_bpi-r4
- Forum search:
- BPI-R4
- Git search:
- BPI-R4
- WikiDevi URL:
- https://techinfodepot.shoutwiki.com/wiki/Banana_Pi_BPI_R4
- OEM Device Homepage URL:
- https://wiki.banana-pi.org/Banana_Pi_BPI-R4
- Firmware OpenWrt Install URL:
- https://downloads.openwrt.org/releases/24.10.4/targets/mediatek/filogic/openwrt-24.10.4-mediatek-filogic-bananapi_bpi-r4-sdcard.img.gz
- Firmware OpenWrt Upgrade URL:
- https://downloads.openwrt.org/releases/24.10.4/targets/mediatek/filogic/openwrt-24.10.4-mediatek-filogic-bananapi_bpi-r4-squashfs-sysupgrade.itb
- Firmware OpenWrt snapshot Install URL:
- https://downloads.openwrt.org/snapshots/targets/mediatek/filogic/openwrt-mediatek-filogic-bananapi_bpi-r4-sdcard.img.gz
- Firmware OpenWrt snapshot Upgrade URL:
- https://downloads.openwrt.org/snapshots/targets/mediatek/filogic/openwrt-mediatek-filogic-bananapi_bpi-r4-squashfs-sysupgrade.itb
- Installation method(s):
- unknown
- Recovery method(s):
- unknown

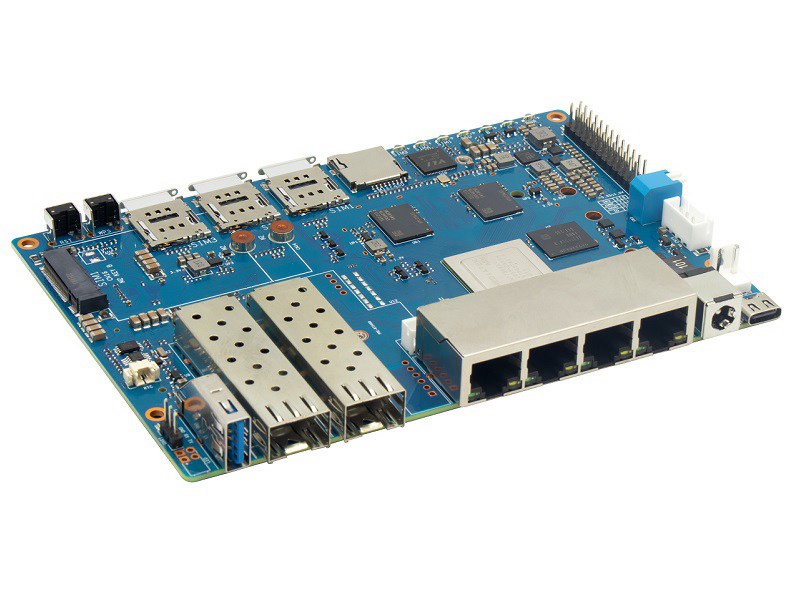

- Picture:
- Comments:
- 8GB boards need to update BL2 to utilize more than 4GB RAM. WLAN requires additional MT7995 module, or other miniPCIe cards.
